CANTILEVER SHELTERS

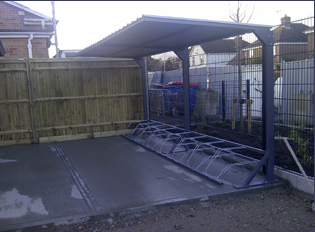

cantilever shelter

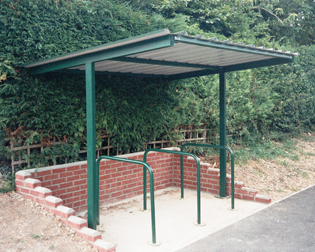

cantilever shelter

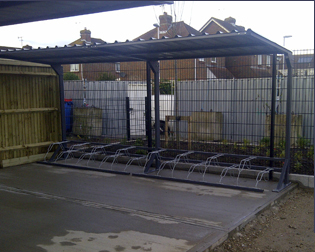

cantilever shelter

cantilever shelter

Contact Basics Equipment



cantilever shelter
Gullwing shelters have the roof panels sloping to the centre (as drawing) with guttering & down-pipes for rainwater to run off. Click here for details.
Cantilever shelters for cycles and/or motorcycles or as a covered storage area for varied use.

Very strong robust structure. Designed to a modular system comprises of standard and add on extension bays. Use as single or double sided entry as applicable to location and inside fittings.

SPECIFICATION:

100 x 50mm RHS steel end frame. Roof panels supported on box section crossbars. Weatherproof galvanised finish. An additional powder coated finish in a choice of colours is optional.
Frames are either predrilled base plates for bolting to the ground or extended uprights with stop for concreting into ground
Choice of roof panels materials either polyester coated box profile steel in a colour finish or clear external grade UV protected polycarbonate

Standard overall height at highest point 2.14 metre. Depth 1.83 metre for steel roof or 2.05 metres for clear polycarbonate.
Shelters available in various lengths. The length depends on the area available and the items to be stored. Listed below are some standard sizes and those based around bike storage but for any other size required just let us know details of your application


Open Storage/Motorbike Shelter
Shelter without bike storage:
Use for:
Motorbikes with or without security rail fitted at rear.
External storage, pallets etc, widths below are guides we can produce the shelter to suit your specific space.
Type of Roof Colour Steel Sheeting
Shelter Depth over roof metres 1.83 2.44
Number of Shelter Bays 1 2 3 4 1 2 3 4
Overall Width metres 3 6 9 12 3 6 9 12
Shelter Ref 80182 80184 80186 80188 80190 80192 80194 80196
Colour coated steel frame 80198 80200 80202 80204 80206 80208 80210 80212
Roof Type/Size External Grade Clear Polycarbonate - 2.0 metre deep
Number of Shelter Bays 1 2 3 4
Overall Width metres 3.05 6.1 9.15 12.2
Shelter Ref 80216 80218 80220 80222
Colour coated steel frame 80206 80208 80210 80212



Cycle Shelter with high/low rack bike storage

cantilever shelter
Roof Type/Size Colour Steel Sheeting - 1.83 metre Deep
Number of Shelter Bays 1 2 3 4
Number of Bikes Stored 6 8 10 12 15 18 20 24 30 42
Overall Width metres 2.1 2.7 3.3 4 4.8 5.7 6.3 7.5 9.3 13
Shelter Ref 80230 80232 80234 80236 80238 80240 80242 80244 80246 80248
Colour coated steel frame 80198 80198 80198 80199 80200 80200 80200 80200 80202 80204
Roof Type/Size External Grade Clear Polycarbonate - 2.0 metre deep
Number of Shelter Bays 1 2 3 4
Number of Bikes Stored 6 9 15 19 29 39
Overall Width metres 2 3.05 4.8 6.1 9.1 12.2
Shelter Ref 80250 80252 80254 80256 80258 80260
Colour coated steel frame 80206 80206 80208 80208 80210 80212



Bike Shelter with tubular Sheffield style cycle hoops
Each hoop supports 2 bikes, one on either side.

cantilever shelter
Roof Type/Size Colour Steel Sheeting - 1.83 metre Deep
Number of Shelter Bays 1 2 3 4
Number of Bikes Stored 6 8 10 12 16 20 24 30 40
Number of Bike Hoops 3 4 5 6 8 10 12 15 20
Overall Width metres 2.6 3.4 4 5.1 6.8 8 10.2 12 17
Shelter Ref 80270 80272 80272 80274 80276 80276 80278 80282 80282
Colour coated steel frame 80198 80198 80198 80200 80200 80200 80202 80204 80204
Roof Type/Size External Grade Clear Polycarbonate - 2.0 metre deep
Number of Shelter Bays 1 2 3 4
Number of Bikes Stored 6 8 10 16 18 24 30
Number of Bike Hoops 3 4 5 8 9 12 15
Overall Width metres 2.3 3.05 4.6 6.1 7 10.2 12.2
Shelter Ref 80290 80292 80294 80296 80298 80300 80302
Colour coated steel frame 80206 80206 80208 80208 80210 80210 80212
