Traditional Square Frame Bikes Shelter - Colour Steel Cladding

Originally designed as Cycle Shelters but also used for any application requiring external protection from the elements e.g. covered storage areas for motorbikes, smokers shelters, outdoor storage facilities.

Modular construction with starter bays and add on extension bays.

SPECIFICATION:

Frames & Purlins: Welded steel box section frames weatherproof hot dipped galvanised finish. Additional powder coat frame finish if required, many colour choices.

Frames are securely and rigidly joined by bolt-on purlins for roof support and near ground level at rear.

Framework supplied either for bolt-down surface fixing or extended uprights with stop for concreting into ground.

All Panels: Box profile steel panels with a polyester coated finish in a choice of colours.

Sizes: The height is approx 2.0 metres with a sloping roof to either the rear or front.

The depth front to rear for bikes is normally 1.83metres (6 foot), but also available in a 2.44 metre (8 foot) version.

The shelter length depends on the area available and the items to be stored. Shelters can be supplied in any length you require. Listed below are some standard sizes and those based around cycles storage but any other size just let us know details of your application.

Options:

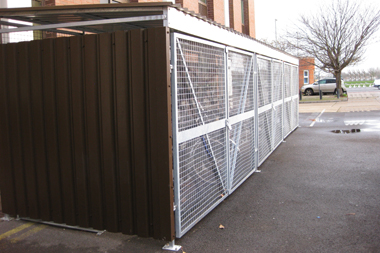

In the tables below we detail sides/ rear panels and hinged gates, but also available are sliding gates, rainwater guttering and downpipes.
Traditional-Cycle-Bike-Bicycle-Shelter-Steel-Cladding

Traditional-Cycle-Bike-Bicycle-Shelter-Steel-Cladding


Open Storage/Motorbike Shelter
Shelter without bike storage:
Use for:
Motorbikes with or without security rail fitted at rear.
External storage, pallets etc, widths below are guides we can produce the shelter to suit your specific space.


Bike shelter
Colour Steel Sheeting
Shelter Depth over roof metres 1.83 2.44
Number of Shelter Bays 1 2 3 4 1 2 3 4
Overall Width metres 3 6 9 12 3 6 9 12
Shelter Ref 80030 80032 80034 80036 80038 80040 80042 80044
Colour coated shelter frame 80072 80082 80086 80068 80073 80083 80087 80069
Side Panels Reference 80100 80101
Rear Panels ref 80106 80114 80118 80120 80107 80115 80119 80121
Hinged Gates-Mesh Ref 80122 80124 80126 80128 80122 80124 80126 80128
Hinged Gates-Sheet Ref 80130 80132 80134 80136 80130 80132 80134 80136



Cycle Shelter with high/low rack bike storage

Bike shelter
Shelter Depth over roof metres 1.83
Number of Shelter Bays 1 2 3 4
Number of Bikes Stored 6 8 10 12 15 18 20 24 30 42
Overall Width metres 2.1 2.7 3.3 3.9 4.8 5.7 6.3 7.5 9.3 13
Shelter Ref 80050 80052 80054 80056 80058 80060 80062 80064 80066 80068
Colour coated shelter frame 80070 80072 80074 80076 80078 80080 80082 80084 80086 80088
Side/End Panels Reference 80010
Rear Panels ref 80102 80104 80106 80108 80110 80112 80114 80116 80118 80120
Hinged Gates-Mesh Ref 80122 80124 80126 80128
Hinged Gates-Sheet Ref 80130 80132 80134 80136



Bike Shelter with tubular Sheffield style cycle hoops
Each hoop supports 2 bikes, one on either side.

Bike shelter
Shelter Depth over roof metres 1.83
Number of Shelter Bays 1 2 3 4
Number of Bikes Stored 6 8 10 12 16 20 24 30 40
Number of Bike Hoops 3 4 5 6 8 10 12 15 20
Overall Width metres 2.6 3.4 4 5.1 6.8 8 10.2 12.8 17
Shelter Ref 80140 80142 80144 80146 80148 80150 80152 80154 80156
Colour coated shelter frame 80072 80074 80076 80078 80082 80084 80086 80088 80090
Side/End Panels Reference 80100
Rear Panels ref 80141 80143 80145 80147 80149 80151 80153 80155 80157
Hinged Gates-Mesh Ref 80122 80124 80126 80128
Hinged Gates-Sheet Ref 80130 80132 80134 80136
