CHILDREN'S SCOOTER RACKS FOR SCHOOLS
|
|
|
|
|
|
Single Sided Starter and Add-on Extension Racks hold 3, 4, 5 and 6 scooters.
Double Sided Starter and Add-on Extension Racks hold 6, 8, 10 or 12 scooters.
Modular System Starter and Add-on racks. A cost effective way to extend racks to hold more children's scooters. Add-on racks have a single leg at one end and fixing plate at the other end that bolts to the leg of the starter rack thus minimising ground fixing points and reducing the cost of installation.
Welded, weatherproof galvanised steel construction. Upright fitted with base plates for surface fixing or extended uprights and stop plates for submerged concreted-in fixing. Scooter holders at 300mm centres.
Overall depth: Single sided 270mm. Double sided 440mm
All legs fitted with either base plates for bolting down as a surface fixing or longer legs with bottom stop plates for concreting into ground as a submerged fixing. No price difference.
All Racks Overall Width
Overall Height Fitted 500mm |
900mm |
1200mm |
1500mm |
1800mm |
|

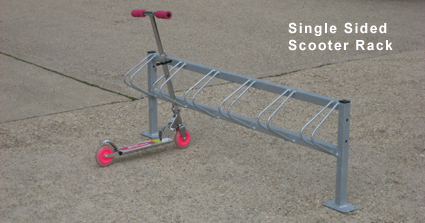

Single sided starter racks |
| No of Child Scooters stored |
3 |
4 |
5 |
6 |
| Reference |
30400 |
30404 |
30408 |
30412 |
|
Single sided Add-on racks |
| Reference |
30402 |
30406 |
30410 |
30414 |
|

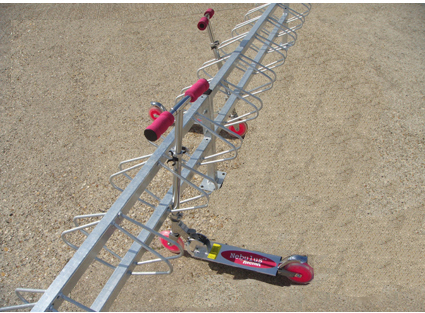

Double sided starter racks |
| No of Child Scooters stored |
6 |
8 |
10 |
12 |
| Reference |
30416 |
30420 |
30424 |
30428 |
|
Double sided Add-on racks |
| Reference |
30418 |
30422 |
30426 |
30430 |
|
|
|
|
|
|
|
